JD-DS10A fire sound and light alarm
It is a kind of sound and light alarm equipment installed on the scene. When the fire occurs and is confirmed, the fire sound and light alarm installed on the scene can be started by the automatic fire alarm controller and send out a strong sound and light alarm signal to remind the scene personnel to pay attention to the purpose.
key word:
Enclosure:
Hotline:
- Details
- Structure Size
- Performance
-
- Commodity name: JD-DS10A fire sound and light alarm
It is a kind of sound and light alarm equipment installed on the scene. When the fire occurs and is confirmed, the fire sound and light alarm installed on the scene can be started by the automatic fire alarm controller and send out a strong sound and light alarm signal to remind the scene personnel to pay attention to the purpose.
JD-DS10A type fire sound and light alarm is a kind of sound and light alarm equipment installed on the scene. When the fire occurs and is confirmed, the fire sound and light alarm installed on the scene can be started by the automatic fire alarm controller and send out a strong sound and light alarm signal to remind the scene personnel to pay attention to the purpose.
Main Features
Multiple ultra-bright white diodes as light source, display eye-catching, long life, low power consumption.Plug - out structure design, reliable contact, easy to construct.
Key words:- JD-DS10A fire sound and light alarm
-
-
Operating voltage
DC24VMonitoring current
≤ 0.3 mA
Alarm volume
75dB-115dB
Flash frequency
1.0 Hz to 1.5 HzTone modulation period
3s ~ 5s
Humidity range
≤ 95% RH(no frost)
Storage temperature
-20℃ ~ +70℃
Operating temperature

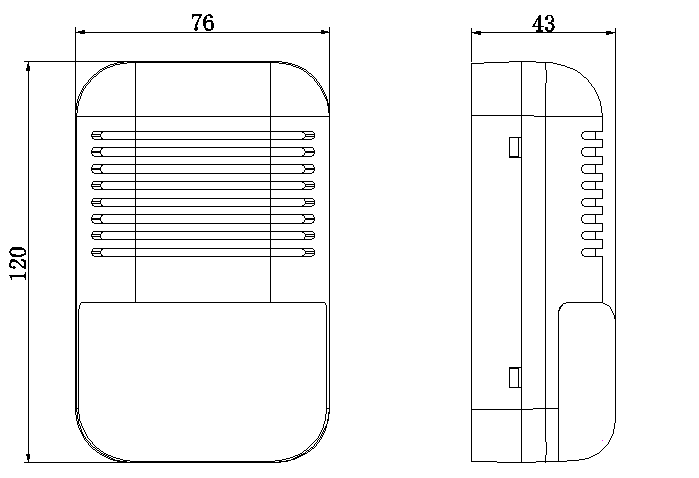

0℃ ~ +55℃Overall dimensions
120mm× 76mm× 43mmLight source
Multiple ultra-bright white diodes as light source, display eye-catching, long life, low power consumptionStructure
Plug-and-pull structure design, reliable contact, easy to construct
Weight
About 148g
