- Commodity name: Jty-gm-d 12-point optical smoke detector
JTY-GM-D12 Smoke detector-Point detectors using scattered light,Trans mitteil
Jty-gm-d12-point optical smoke fire detector is a new intelligent detector developed by our company, which can be connected with all the newly developed fire alarm controllers (such as F11, F13, F21, F61, etc.) and meet the national standard GB 4715-2005 "Point smoke Fire Detector". Dust can be processed, anti-interference ability is strong, using electronic coding, accounting for a loop address.
Main Features
Meet the national standard GB 4715-2005 "point smoke detector".● Strong anti-interference ability, including dust, fiber, insects, damp, high and low temperature, electromagnetic interference, vibration, non-fire smoke, external strong light (light source) and so on.
● Built-in CPU, the collected data for storage, analysis and judgment, with self-diagnosis function.
● Two bus, no polarity, through the field two bus communication with the controller.
● With automatic compensation function, reduce the influence of dust on detection sensitivity. When the detector is seriously polluted and cannot be compensated, the pollution fault will be reported to the controller.
● Especially suitable for the early detection of open flame and smouldering smoke.
-
-
Operating voltage
DC24V
Operating current
< 0.3mA
Alarm current
< 1.3mA
Response threshold
≤ 0.2 dBm
Humidity range
≤ 95% RH(no frost)
Storage temperature
-20℃ ~ +70℃
Operating temperature
-10℃ ~ +50℃

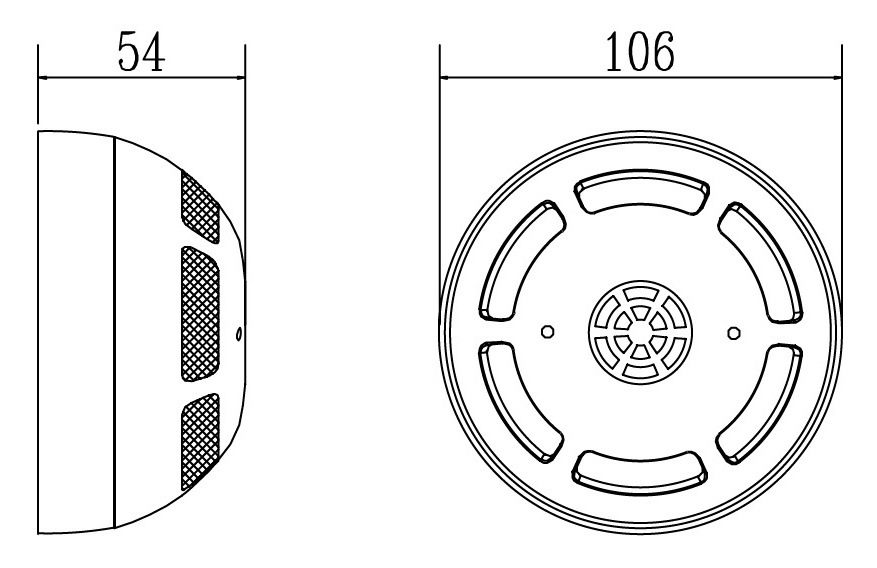

Overall dimensions
(H) 54mm* (D) 106mm
