- Commodity name: JTW-ZDM-D13A point type Temperature Detector (A2R)
JTW-ZDM-D13A Point type heat fire detectors (A2R)
JTW-ZDM-D13A point temperature sensing fire detector (A2R) is a new detector developed by our company, which can be connected with all the newly developed fire alarm controllers (such as F11, F13, F21, F61, etc.). Meet the national standard GB 4716-2005 "point type temperature fire detector". Using electronic coding, accounting for a loop address.
Main Features
Meet the national standard GB 4716-2005 "point type temperature fire detector".● Strong anti-interference ability, including damp, high and low temperature, electromagnetic interference, vibration and so on.
● Built-in CPU, the collected data for storage, analysis and judgment, with self-diagnosis function.
● Communicate with the controller through the field two bus.
● Realize early alarm by detecting the ambient temperature.
● For A2R class with differential temperature alarm function.
-
-
Operating voltage
DC24V
Operating current
< 0.3mA
Alarm current
< 1.3mA
Operating temperature
67 ℃ Humidity range
≤ 95% RH(no frost)
Storage temperature
-20℃ ~ +70℃
Operating temperature
-10℃ ~ +50℃

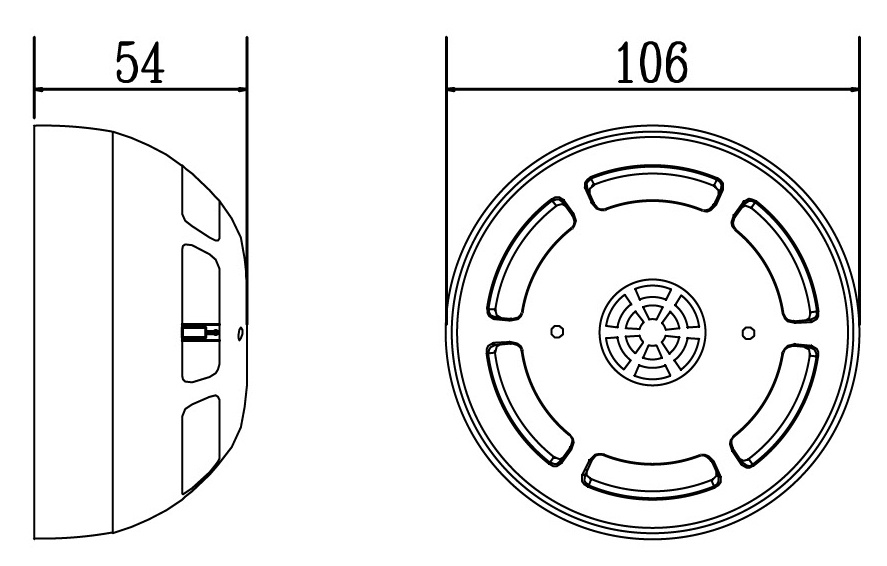

Overall dimensions
(H) 54mm* (D) 106mm
