JTF-GOM-D21 point composite smoke detector temperature fire detector
JTF-GOM-D21 Point type composite smoke heat fire detector
key word:
Enclosure:
Hotline:
- Details
- Structure Size
- Performance
-
- Commodity name: JTF-GOM-D21 point composite smoke detector temperature fire detector
JTF-GOM-D21 Point type composite smoke heat fire detector
JTF-GOM-D21 composite smoke detector is a new detector developed by our company, which can be connected with all the fire alarm controllers newly developed by our company (such as F11, F13, F21, F61, etc.). Meet the national standards GB 4715-2005 "point type smoke detector" and GB 4716-2005 "point type temperature detector". Using electronic coding, accounting for 2 loop addresses.
Main Features
● At the same time meet the national standard GB 4715-2005 "point type smoke detector" and GB 4716-2005 "point type temperature detector".● At the same time, it has the characteristics of JTY-GM-D22 point-type optical smoke detector and JTW-ZDM-D23A point-type temperature sensing fire detector.
● Communicate with the controller through the field two bus, accounting for two loop addresses.
-
-
Operating voltage
DC24V
Operating current
< 0.3mA
Alarm current
< 1.3mA
Response threshold
≤ 0.2 dBm
Operating temperature
67 ℃ Humidity range
≤ 95% RH(no frost)
Storage temperature
-20℃ ~ +70℃
Operating temperature
-10℃ ~ +50℃

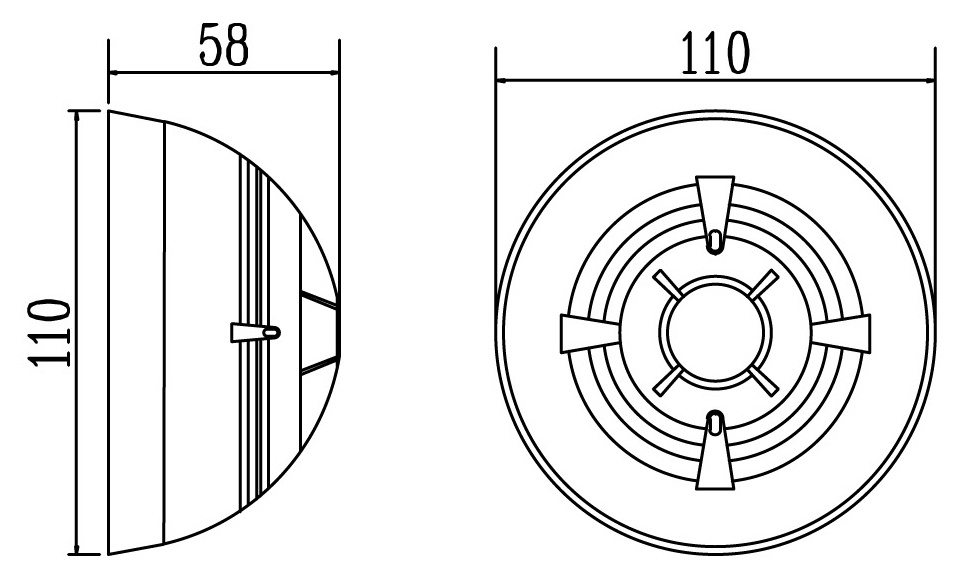

Overall dimensions
(H) 58mm* (D) 110mm
