JB-QT-F11 Fire Alarm Controller (Interlocking)

JB-QT-F11 Fire alarm control units (linkage type)


key word:

Enclosure:

Contact Us
  • Details
  • Structure Size
  • Performance
    • Commodity name: JB-QT-F11 Fire Alarm Controller (Interlocking)

    JB-QT-F11 Fire alarm control units (linkage type)

    JB-QT-F11 fire alarm controller (interlocking) is a fire alarm controller standard GB 4717-2005, GB 16806-2006 "fire linkage control system" standard, GB/T19001-2008 "Quality Management system requirements" and "fire products 3C Certified Implementation Rules for fire alarm controllers. It is suitable for centralized system management of fire protection in large shopping malls, living quarters, production bases, office buildings, shopping malls, hotels and other areas.

    The equipment adopts modular design, high reliability, strong function, easy maintenance, easy to expand. Man-machine interface using touch screen interface intuitive, easy to use, with good interaction. It is a cabinet type structure.

    Equipment composition: 8-inch TFT LCD panel, main engine enclosure, micro thermal printer, battery pack, cabinet.



    Main Features

    JB-QT-F11 fire alarm controller (coupling) provides 24 detection loops, each loop is connected to a maximum of 239 address devices, the maximum capacity of a single machine 5736 points.

    It can be used as the centralized machine of the fire alarm monitoring system. The whole system can connect up to 128 fire alarm controllers.

    Supports the graphical display function, through the graphical display can be more intuitive real-time observation of the corresponding status of each point.

    The embedded real-time system based on 32-bit ARM processor has the characteristics of strong real-time, high reliability, modular design and so on.

    8 inch TFT true color industrial LCD screen, with wide temperature range, strong anti-interference ability and other advantages.

    Graphical interface, convenient and flexible touch screen operation, better human-computer interaction.

    With the black box function, can store 1024 fire records, 1024 fault records.

    Powerful external communication function, providing GPRS, Ethernet, CAN, RS485, optical fiber and other communication interfaces.

    It has one passive alarm signal output terminal and one passive fault signal output terminal.

    Supports the backup function, which automatically implements active/standby power switchover and intelligent battery charge/discharge management

    Key words:
    • Fire alarm controller (interlocking)
  • 111

  • System capacity

    734208

    Maximum networked node of the system

    128

    Single unit capacity

    5736

    Maximum number of circuits

    24

    Maximum number of loop points

    239

    LCD

    8 "TFT true color liquid crystal

    Touch screen

    Support for

    Bus linkage control disk maximum number of points

    512

    Maximum number of points of multi-line linkage control disk

    127

    Direct output points

    1 public fire alarm passive output and 1 public fault passive output

    External output power

    28V(1A)

    Networking

    Optional

    Optical fiber

    Optional

    Printer

    1

    Communication interface

    CAN

    1

    RS485

    1

    GPRS

    1

    Ethernet

    1

    USB

    1

    Power supply

    Main power

    AC220(187 ~ 242V) 50Hz

    Battery

    12V/38Ah battery (two batteries)

    Linkage power supply

    12V/17Ah battery (two,10A)  , 12V/24Ah battery (two,20A)

    Loop output voltage

    DC15V ~ 20V

    Maximum loop output current

    200mA

    Short circuit protection current

    400mA

    Operating environment temperature

    0℃ ~   45 ℃

    Working environment humidity

    ≤ 95%RH(40± 2  ℃ & NBSP;)

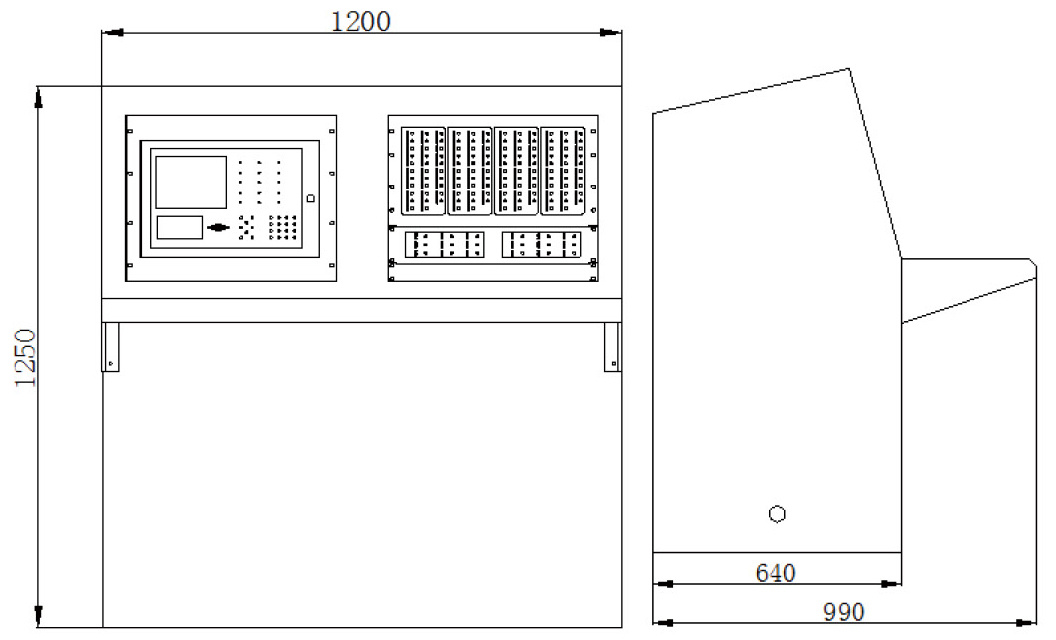

    Structure size (length * width * height)

    1200mm× 990mm× 1250mm
