JD-M61 fire door monitoring module

JD-M61 Fire door monitoring module

key word:


Contact Us
  • Details
  • Structure Size
  • Performance
    • Commodity name: JD-M61 fire door monitoring module

    JD-M61 Fire door monitoring module

    JD-M61 fire door monitoring module meets the requirements of national standard GB 29364-2012 "Fire Door Monitor". This module can receive the linkage command of the monitor (namely JB-QB-F91 type fire door monitor developed by our company), control and release the door closer, and transmit the status signal of the door closer to the monitor.


    Main Features
    ● Base separated structure design, simple structure, convenient installation.

    ● Adopt distributed intelligent technology, built-in CPU.

    ● One passive dry contact input.

    ●1 DC24V voltage output.

    ● Can monitor the output line of open circuit, short circuit fault.

    ● Set the LED status indicator.

    ● Communicate with the monitor through the field two bus.

    ● Through the power supply two bus to provide external control power supply.

  • Operating voltage DC24V
    Static current < 0.4mA
    Action Red, shining during inspection, often bright when starting
    Status Red, when the monitor receives the feedback of the door closing device, it is steady on
    Humidity range ≤ 95% RH(no frost)
    Storage temperature -20℃ ~ +70℃
    Operating temperature -10℃ ~ +50℃
    Encoding mode Electronic coding
    Weight  0.092 kg± 0.01 kg

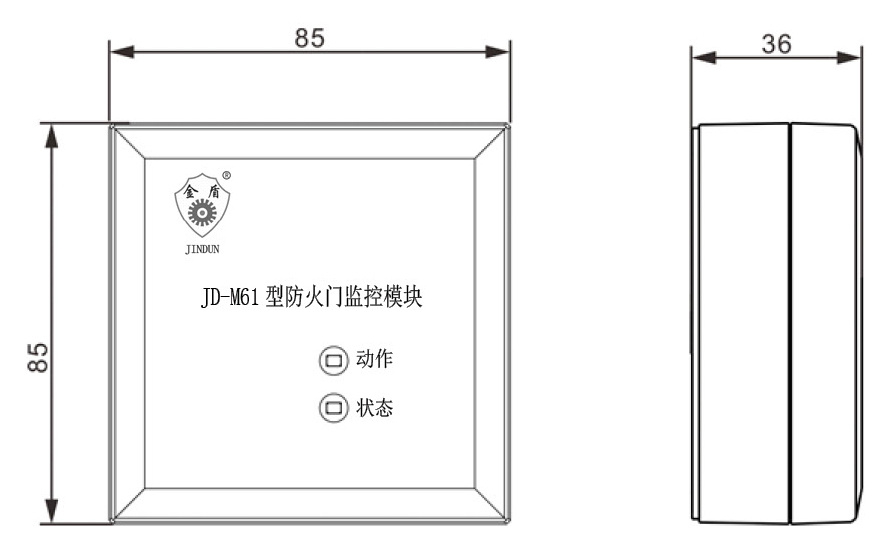

    Overall dimensions L 85 mm× W 85mm× H36mm
