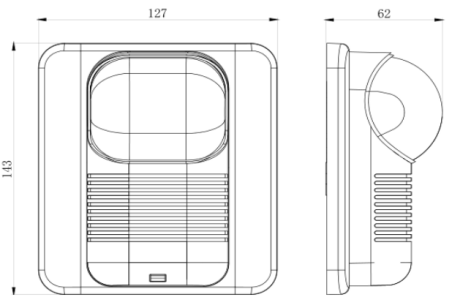

  • Structure Size
  • Performance
    • Commodity name: JD-DS10W fire alarm

    JD-DS10W type fire sound and light alarm is a kind of wireless sound and light alarm equipment installed on the scene. When the fire occurs and is confirmed, the fire sound and light alarm installed on the scene can be started by the household fire alarm controller, and send out a strong sound and light alarm signal, so as to remind the scene personnel to pay attention to the purpose.



    Main Features

    Multiple ultra-bright white diodes as light source, display eye-catching, long life, low power consumption
    Plug - out structure design, reliable contact, easy to construct

  • Contents Technical parameters
    Operating voltage DC24V
    Operating current Normal standby current ≤ 1mA, alarm current ≤ 100mA
    Ambient temperature 0 ℃ to 40 ℃
    Relative humidity 95%RH (40℃ ~ 2℃)
    Communication distance Open distance 30m
    Overall dimensions long 100× High & 70 times; 45 (mm) wide
    Weight 180g
