- Commodity name: JD-M35 type bus power isolation module
JD-M35 Bus power isolation module
JD-M35 bus power isolation module is used to connect two different devices. The use of DC24V power supply, bus signal electrical isolation transmission, can enhance the anti-interference ability of the whole system, and has the function of extending the bus communication distance. When a bus fault occurs, the faulty part of the bus is isolated from the entire system to ensure that other parts of the system can work normally, and to facilitate the identification of the faulty part of the bus. When the faulty part of the bus is repaired, the isolator can work on its own, the isolated part back into the system.
Main Features
● Base separated structure design, simple structure, convenient installation.
● Carrying capacity: 239.
● Set the LED green status indicator.
● Non-coding, does not occupy the bus address. -
-
Operating voltage
DC24V
Load capacity
239 animals
Humidity range
≤ 95% RH(no frost)
Storage temperature
-20℃ ~ +70℃
Operating temperature
-10℃ ~ +50℃

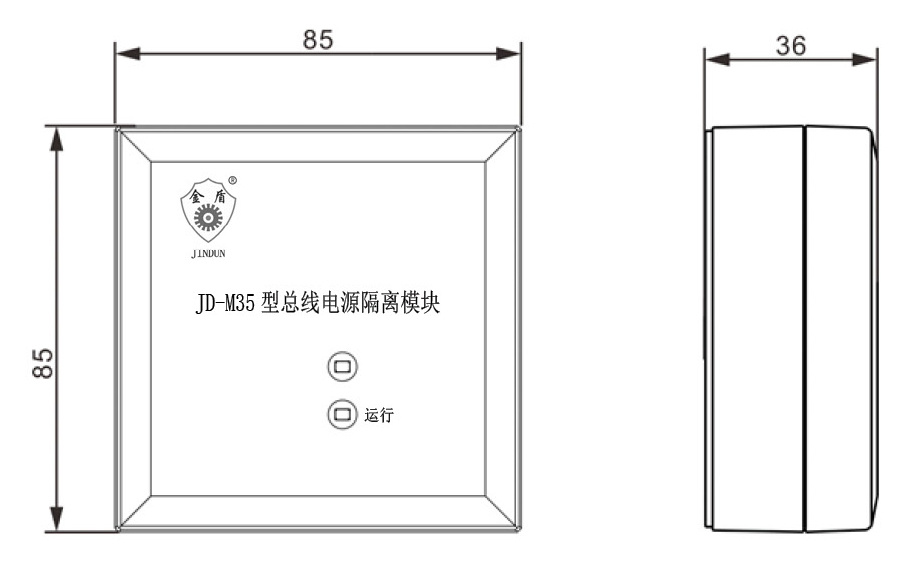

Overall dimensions
85mm*85mm*36mm
