JB-QB-F52 User information transmission device

The transmission equipment is characterized by rich operation functions, convenient connection and good real-time performance, and can be applied to all kinds of networking projects. Meet the new national standard GB 16806-2006 "Fire Linkage Control System" on the transmission device requirements. Wall hanging structure, easy to install to meet the needs of the site. The remote network transmission device adopts the embedded operating system uCOS as the software platform, which improves the software stability, the modular design structure is easy to upgrade the software, and has two communication modes of TCP/IP and GPRS/CDMA. Reduce product categories and administrative costs.

key word:

Category:

Internet of Things user information transmission device

Enclosure:

Hotline:

400-900-6119

Details

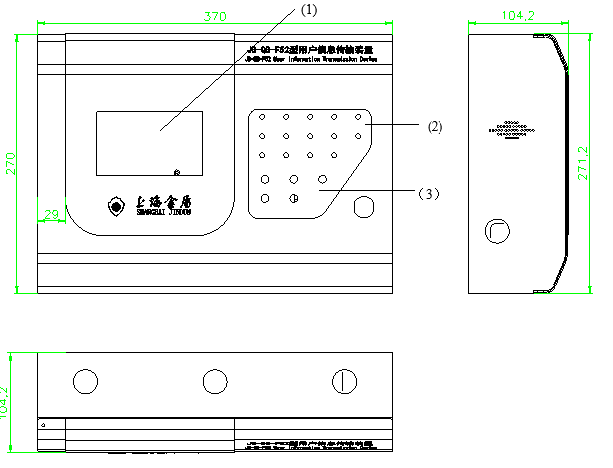

Structure Size
Performance

- Commodity name: JB-QB-F52 User information transmission device
The transmission equipment is characterized by rich operation functions, convenient connection and good real-time performance, and can be applied to all kinds of networking projects. Meet the new national standard GB 16806-2006 "Fire Linkage Control System" on the transmission device requirements. Wall hanging structure, easy to install to meet the needs of the site. The remote network transmission device adopts the embedded operating system uCOS as the software platform, which improves the software stability, the modular design structure is easy to upgrade the software, and has two communication modes of TCP/IP and GPRS/CDMA. Reduce product categories and administrative costs.

The transmission equipment is characterized by rich operation functions, convenient connection and good real-time performance, and can be applied to all kinds of networking projects. Meet the new national standard GB 16806-2006 "Fire Linkage Control System" on the transmission device requirements. Wall hanging structure, easy to install to meet the needs of the site. The remote network transmission device adopts the embedded operating system uCOS as the software platform, which improves the software stability, the modular design structure is easy to upgrade the software, and has two communication modes of TCP/IP and GPRS/CDMA. Reduce product categories and administrative costs.

Main Features

● Support TCP/IP networking. The information is transmitted to the monitoring center through the local area network or the wide area network.

● Support GPRS/CDMA networking. The information is transmitted to the monitoring center through GPRS/CDMA network. (Optional module)

● The configuration software of PC is used to complete the setting of JB-QB-F51 transmission device through the series interface.

● Use 7 inch color LCD touch screen operation.

● The duty officer does not rely on the fire alarm controller, directly through this device to the monitoring center emergency alarm signal.

● The administrator of the city fire automatic alarm monitoring center can check the on-duty status of the fire duty personnel of a network unit according to the pre-set time or at any time through the equipment.

● The fire workstation of the city fire automatic alarm monitoring center must have a fixed IP address.

● On-site can be "self-check", "reset", "silencing", "check response", "manual alarm" and other operations.

Wide power supply voltage range, own backup power.

● The equipment in the fire, fault and check, shielding have different sound prompts, press the "mute" key, can eliminate the alarm sound.

● CAN connect with fire alarm controller through RS232, CAN bus and switch signal. When connecting through serial port, it is required that the relevant information of fire alarm controller can be output through the corresponding serial port, and the manufacturer needs to provide the communication protocol.

● Two isolation CAN interfaces are provided to connect to the fire controller.

● Provide 2 switch output (default public alarm, public fault). It can be connected to building fire protection equipment.

● Can receive 4 switch input signal.

● Provide one RS485 interface, which can be connected with building fire equipment (the manufacturer needs to provide the agreement).

● One RS232 interface is provided to connect with building fire equipment (agreement provided by the manufacturer is required).

Means of communication	CAN, RS485, TCP/IP, GPRS
Power supply	Main AC 187V ~ 242V
Output	Support one DC 5V 1A
Operating current	300mA
Power consumption	< 30W
Ambient temperature	0º C ~ 45º C
Working environment Relative humidity	≤ 92%RH(40º C)
Touch screen	7-inch touch-color screen
