    • Commodity name: JD-M32B input module

    JD-M32B adopts single chip microcomputer and intelligent software, special moisture-proof technology, surface mount (SMT) production process and plug type structure design, stable and reliable work, with strong anti-interference ability. Can receive any normally open passive contact action signal, such as: pressure switch, water flow indicator, temperature sensing cable action signal, can be used with Golden Shield F1X series fire alarm controller. Meet GB 16806-2006 "Fire Linkage Control System" and "Fire Products 3C Certification Implementation Rules". This product is pollution-free, low power consumption, suitable for all kinds of industrial and civil buildings.

    Main Features:

    Two bus design, no polarity;
    The feedback input signal of a device can be input; Occupies a node address,
    Using electronic coding to address (1~239);
    Monochrome indicator light display module feedback alarm information;
    With line fault detection function, can detect passive switch contact line failure.


    Contents Technical parameters
    Operating voltage Signal bus DC24V
    Operating current Monitoring current < 0.3 mA; Feedback alarm current < 1.3 mA
    Storage temperature - 20 ℃ ~ + 70 ℃
    Operating temperature -10℃ ~ +55℃
    Relative humidity ≤95%RH(no frost)
    Input signal Passive switching quantity signal
    Output action indicator Lights up normally, always lights up in action

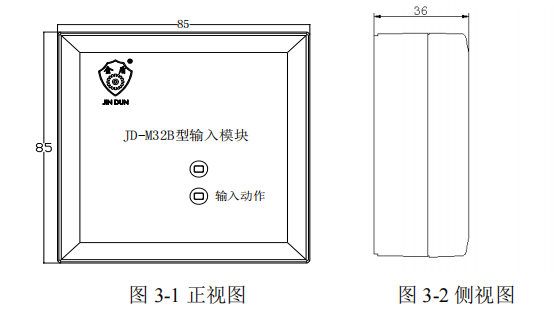

    Overall dimensions Length × width × height =85mm×85mm×36mm(with base)
