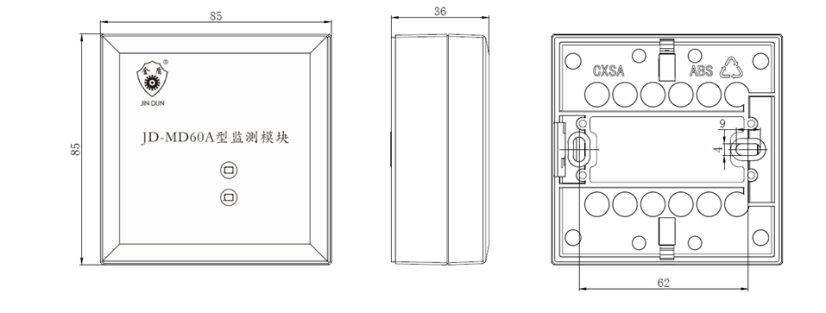

- Structure Size
- Performance
-
- Commodity name: JD-MD60A monitoring module
JD-MD60A monitoring module is used for monitoring module quantity and digital quantity signal monitoring and collection. It communicates with JD-M108 fire control equipment monitoring device (referred to as monitoring device) produced by our company through two buses, and transmits the status to the monitoring device. The JD-MD60A monitoring module occupies five bus addresses by default.
Main Features
Two bus, no polarity;
Power bus, polarity;
The default value is 5 node addresses
Monochrome indicator light displays module action information;
Upload analog and digital quantities -
-
Power supply voltage: DC24V
Two bus voltage: DC 19V
Two bus current: ＜2mA
Output signal: DC 5V
Input signal: Analog quantity signal input Working environment temperature: -10℃～+55℃
Relative humidity of working environment: ≤95％RH（40±2℃ ）
