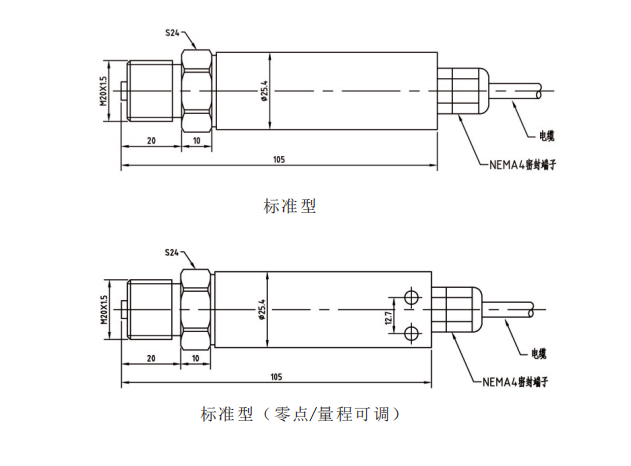

- Structure Size

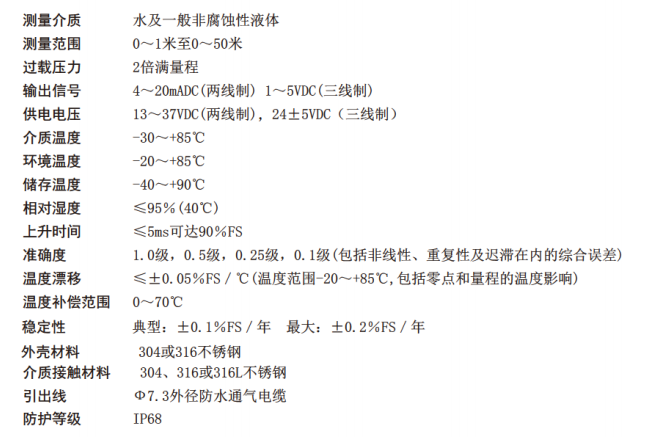

- Performance
-
- Commodity name: M111 standard pressure transmitter
M111 standard pressure transmitter selects the international famous company's high-precision, high-stability pressure sensor assembly, after high reliability amplifier circuit and precision temperature compensation, the pressure of the measured medium will be converted into 4~20m4DC, 0~5VDC, 0~ 10VDC/~5VD and other standard electrical signals, The high quality sensor, exquisite packaging technology and perfect assembly process ensure the excellent quality and best performance of the product. The product has a variety of interface forms and a variety of lead mode, can maximize to meet the needs of customers, suitable for all kinds of measurement and control equipment supporting use.
Main Features
Adopt foreign advanced technology
Small size, high cost performance, high stability, high sensitivity
0~--0.1MPa to 0~ 250MPa.
All welded construction
A variety of range options, user debugging convenient LING
Anti-lightning, anti-RF interference 1
Optional O with zero/full scale adjustable
Pressure type gauge pressure, absolute pressure, vacuum
Accuracy: 1.0 level, 0.5 level, 0.25 level, 0.1 level
Optional small integrated digital display and with switching output head -
-
Provide solutions to your questions and prepare for your choices
