JD-ZFJC-E5W-FF centralized power centralized control type fire emergency lighting fixture
key word:
Category:
Enclosure:
Hotline:
- Details
- Structure Size
- Performance
-
- Commodity name: JD-ZFJC-E5W-FF centralized power centralized control type fire emergency lighting fixture
Communicate with the emergency lighting controller, upload its own working data in real time, realize the controller's monitoring and control of lamps and lanterns
Flame-retardant plastic shell, stylish and atmospheric appearance
High quality IED light source, high brightness, long life, and more reliable
The communication mode is two buses, no polarity connection, easy and reliable engineering debugging
Low power consumption design, more energy saving
-
-
Technical parameters:
1. Meet the national standard: GB17945-2010
2. Light source: LED, DC3.0V 1W E5050UX23-Cu
3. Main power consumption: 5W
4. Working mode: Unsustainable
5. Emergency output light flux > 50Im
6. Emergency working time: 90 minutes
7. Protection level: IP30

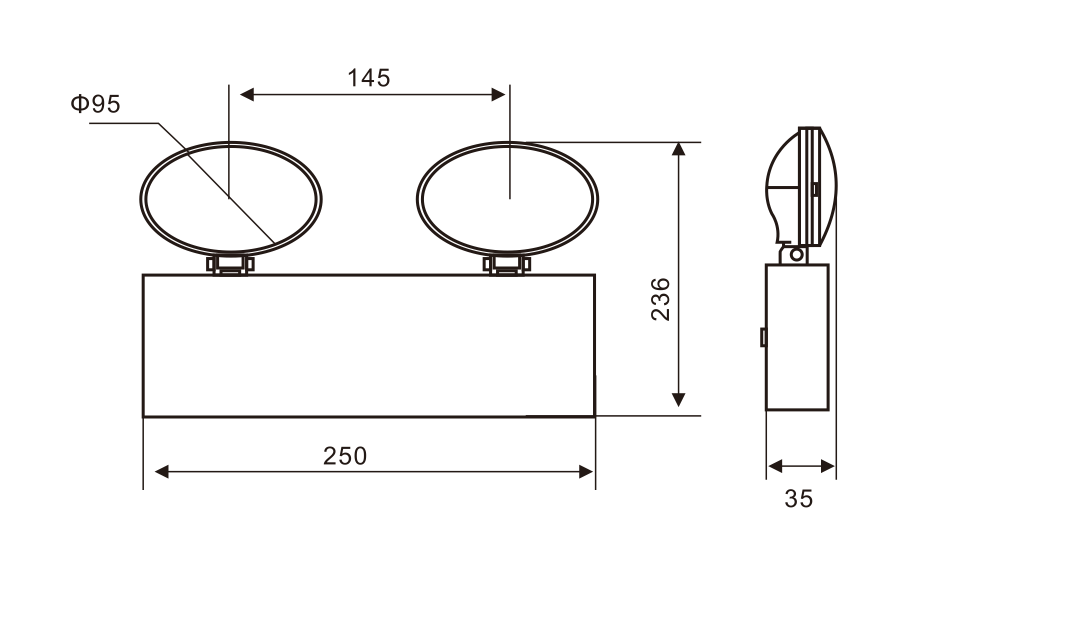

8. Product size: See product appearance drawing
9. Installation mode: wall-mounted installation
10. Rated power supply voltage: DC36V
Provide solutions to your questions and prepare for your choices
