JD-BLJC-2LROEⅡ1W-B20 centralized power supply centralized control type fire emergency sign lamp
key word:
Category:
Enclosure:
Hotline:
- Details
- Structure Size
- Performance
-
- Commodity name: JD-BLJC-2LROEⅡ1W-B20 centralized power supply centralized control type fire emergency sign lamp
Communicate with the emergency lighting controller, upload its own working data in real time, realize the controller's monitoring and control of lamps and lanterns
Metal shell, ultra-thin 7mm design, beautiful appearance and not easy to damage
In the emergency state, the lamp strobe, forming the evacuation guide optical flow, the effect is more significant
High quality LED light source, uniform brightness, long life, more reliable ⑥ communication mode for two buses, non-polar connection, engineering debugging is simple and reliable
Low power consumption design, more energy saving -
-
Technical parameters:
1. Meet the national standard: GB17945-2010
2. Light source: LED, DC3.0V 0.06W!
F5
3. Main power consumption: 1W
4. Working mode: Continuous
5. Surface brightness: 50cd/m2~ 300cd/m2
6. Emergency working time: 90 minutes
7. Protection level: IP30

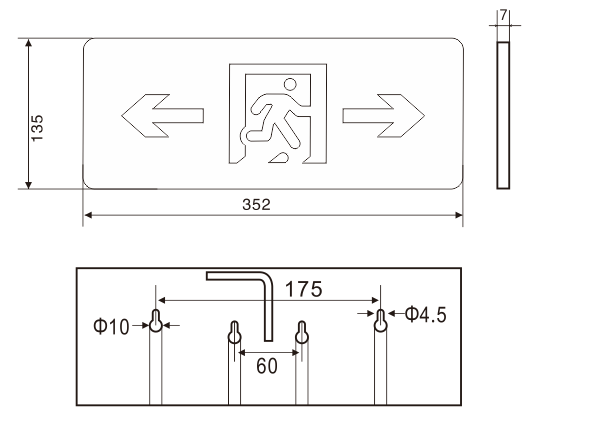

8. Product size: See product appearance drawing
9. Installation mode: hanging installation
10. Rated power supply voltage: DC36V
