JD-BLJC-1LROE II 1W-B30 centralized power supply centralized control type fire emergency sign lamp
Communicate with the emergency lighting controller, upload its own working data in real time, realize the controller's monitoring and control of lamps and lanterns
key word:
Category:
Enclosure:
Hotline:
- Details

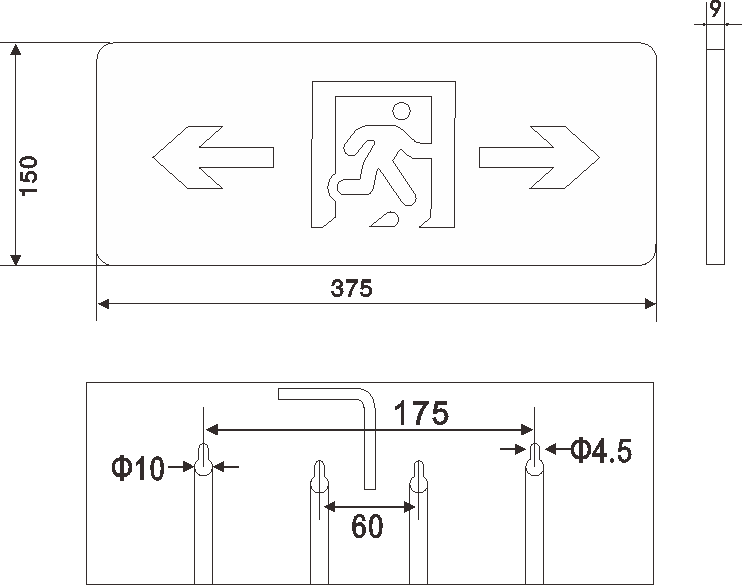

- Structure Size
- Performance
-
- Commodity name: JD-BLJC-1LROE II 1W-B30 centralized power supply centralized control type fire emergency sign lamp
Communicate with the emergency lighting controller, upload its own working data in real time, realize the controller's monitoring and control of lamps and lanterns
Main Features
Communicate with the emergency lighting controller, upload its own working data in real time, realize the controller's monitoring and control of lamps and lanterns
Metal shell, ultra-thin 10mm design, beautiful appearance and not easy to damage
In the emergency state, the lamp strobe, forming the evacuation guide optical flow, the effect is more significant
High quality LED light source, uniform brightness, long life, more reliable
The communication mode is two buses, no polarity connection, easy and reliable engineering debugging
Low power consumption design, more energy saving
Key words:- Fire alarm controller (interlocking)
-
-
Product model
JD - BLJC - 1 lroe Ⅱ 1 w - B30 Overall dimensions
L353mm× W10mm× H137mm
Rated power
1W
Operating voltage
DC36V
Mode of operation
Persistent
Installation mode
Wall mount
Communication mode
Non-polar, two-bus
Protection level
IP30 Material of shell
Stainless steel Emergency time
≥ 90 minutes
Light source type LED
