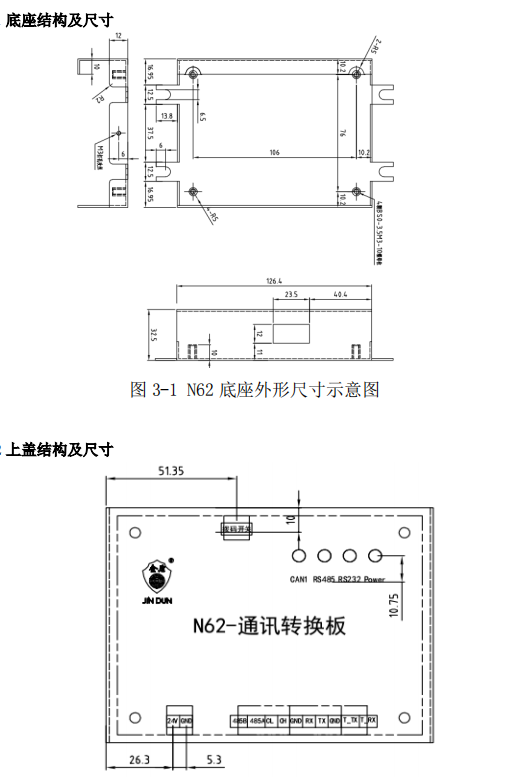

- Structure Size
- Commodity name: N62 communication converter
The N62 Communication converter board is a communication converter board that CAN convert between CAN, RS485, and RS232 protocols. It is applicable to the information exchange between the controller of the company and other manufacturers, and has the function of corresponding to the controller of specific manufacturers according to the dip switch, in accordance with the Quality Management System requirements.
The N62 Communication converter board is a communication converter board that CAN convert between CAN, RS485, and RS232 protocols. apply
In the company and other manufacturers of controller information exchange, and according to the dip switch corresponding to the specific manufacturer of controller
Function, in line with the "quality management system requirements".
Contents Technical parameters Operating voltage Voltage :24V± 1V Communication mode CAN, RS485, RS232 Dip switch mode Binary DIP code Communication cable specifications ZR-RVS twisted-pair two-color line (red black) cross-sectional area :1.0~1.5mm' Indicator light Power indicator: The red indicator light is on when the product is working normally. CAN indicator: Green indicator blinks when using CAN communication
RS485 indicator: The green indicator blinks when using RS485 for communication.
RS232 indicator: Green indicator blinks when RS232 is used for communication
Communication host equipment Golden Shield F-series controller Operating environment temperature -10℃~40℃ Relative humidity of working environment 95%RH (40 soil 2℃) Installation mode Wall mount Maximum external dimensions L128.8mm×W96.4mm×H32.5mm
